HEATHKIT DX100 TRANSMITTER PARTS FOR SALE

BUY HERE!! Use the familiar SHOPPING CART and the payment method of your choice.
PAY WITH PAYPAL OR CREDIT CARD, mail in form or E-MAIL us to pay with a check or money order. OR: USE OUR ORDER FORM below for postal orders. Please note that we do NOT accept Western Union money orders or other oddball m.o. that is not accepted at the bank.

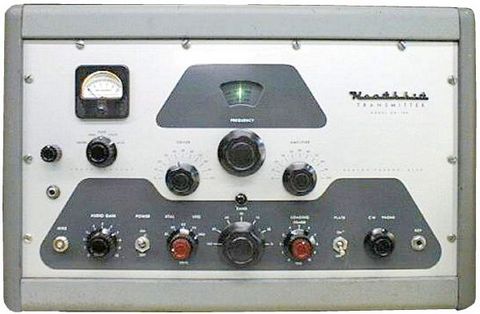

A decent number of parts are left for the classic 160m - 10m bandswitching AM and CW transmitter. All tested and in excellent condition. For some items, we may have more than one. Inquire.

CHECK OUT (PAY) NOW - OR VIEW CART CONTENTS:

CLICK "VIEW CART" IN ORDER TO CHECK OUT AND PAY !!

PLATE POWER CHOKE, PN 46-10 power supply choke 5.5 Henries at 400 mA - $35.00
USA SHIPPING ONLY.

LV CHOKE, Heathkit PN 46-11 has 7H at 150 mA - $25.00.
USA SHIPPING ONLY.

Heathkit LV transformer PN 54-30 - SOLD OUT.
SEC 635V at 150 mA, plus 12.6V CT at 4A filaments etc. 2X 5V also.
SOLD 2.
USA SHIPPING ONLY.

Was available for $215.00 from Dahl Co. -
HEATH DX-100 LOW VOLTAGE
HEATH P/N 54-31
PR) 117 VAC 60 HZ
S1) 317-60-0-60-317 VAC @ 250 MA CCS
S2) 5 VAC @ 4A (3 KV INSULATION)
S3) 5 VAC @ 2A
S4) 12.6 VCT @ 4A
DM) HT = 4.500 WT = 3.750 DT = 3.890 MD = 3.000 MW = 3.000


HV PLATE TRANSFORMER 1800V VT - Heathkit 54-31 = SOLD OUT!


5R4 tubes, used, tested $4.00 each.

5V4 tube, used, tested - $11.00 each.

6146 tubes, used, tested - $18.00 each.

12BY7 tube, used, tested - $5.00 each.

5763 tube used, tested - $3.00 each.

6AQ5 tube used, tested - $3.00 each.

12AX7 tube used, tested - $12.00 each.

OA2 tube used, tested - $3.00 each.

DX100 Meter - Two available excellent condition.
Available for $14.00 each.

DX100 Meter switch assembly - rotary switch.
Available for $4.00 each.

DX100 AM-CW switch assembly - rotary switch.
Available for $4.00 each.

Plate RF choke assembly for RF final - $24.00

RF Final Coil with taps for all bands. Plus auxiliary coil - $32.00
(see above for band-switch assembly.)

Audio input jack assembly with bracket, 5 capacitors,
3 resistors, terminal strips etc. - $5.00
Pair of 6146 octal sockets, ceramic and mounting hardware, ceramic on plate with RF Choke, capacitors, hardware etc. - $18.00

Pair of 1625 tube sockets (7-pin), ceramic and mounting hardware, ceramic - $16.00

LV can Capacitor - $5.00

DX100 postentiometer, audio gain - $5.00

DX100 potentiometer, BIAS - $5.00

Pair of 1625 ceramic plate cap connectors - $12.00

LOT of RFCs, coils, Power resistors, small resistors etc. $16.00

CRYSTAL SOCKETS assembly for DX100B - holds four (4) FT243 crystals - $24.00

Click here to buy CRYSTALS for the DX100

When these items are sold, they will be marked as such on this web page (or removed.) (ideally!) Meanwhile please inquire.

Please e-mail me or check back on this web page to see what is still available (save as a Favorite - or right click and create a shorcut on your desktop so you can come back here!)

We TRY to update it frequently as each of the items is sold, or spoken for.

Payment is accepted via check, money order, Paypal or credit card. Shipping will be additional on all items. No Western Union.

73 - Brian, AF4K

LIMITED SALES TO ITALY or ARGENTINA unless you accept that items may be LOST and you agree to not file claims for loss. For other, non-USA mainland destinations, PLEASE ALLOW for shipping to take up to 4 to 6 WEEKS! After numerous losses, thefts and claims, we usually no longer ship to these two countries. Sorry. Inquire by e-mail for details.

CHECK OUT (PAY) NOW - OR VIEW CART CONTENTS:

CLICK "VIEW CART" IN ORDER TO CHECK OUT AND PAY !!

Shipping costs will be added all prices - please state your zip code for the larger items.

PAYMENTS VIA PAYPAL GLADLY ACCEPTED!


For small orders, add $7.00 for USA shipping and handling.

OR: to inquire or buy any item(s):

CLICK HERE to E-mail me

73 from Brian ((( Amateur Radio G3XLQ / AF4K )))
