FT243 RADIO CRYSTALS FOR SALE

From 7.300 to 7.499 MHz

PREVIOUS

NEXT

FIX ABOVE LINES!

ORDER FT243 CRYSTALS with VISA, MASTERCARD, AMEX, PAYPAL etc:

CUSTOMER REVIEWS of AF4K PRODUCTS.

Our FT243 crystals are generally $16.00 to $24.00 each.
PAY WITH PAYPAL OR CREDIT CARD, mail in form or E-MAIL us to pay with a check or money order. OR: USE OUR ORDER FORM below for postal orders. Please note that we do NOT accept Western Union money orders or other oddball m.o. that is not accepted at the bank.

QUESTIONS?
E-mail Brian Carling, AF4K

DO YOU PREFER PAYING BY CHECK OR MONEY ORDER? (Also credit card, Paypal etc.)
CLICK HERE TO PRINT AN ORDER FORM AND SEND IN BY MAIL!

FT243 crystals have pins spaced 1/2 inch apart, and are used in MANY ham radios made from
the 1940s through 1970s. They are also used in countless military sets such as the BC-611 and GRC-109 etc.
Note- some of these are original FT243 crystals, some are reworked surplus units with
wire lead crystals inside as described in tube transmitter articles using them in CQ Magazine
and detailed technical analysis in Electric Radio Magazine.

Brian Carling, AF4K

CLICK ON LOGO - CRYSTALS FOR SPECIFIC BA RADIOS:

7300 kHz
7325 kHz
7350 kHz
7375 kHz
7400 kHz
7425 kHz
7450 kHz
7475 kHz
7500 kHz
7525 kHz
7550 kHz
7575 kHz
7600 kHz
7625 kHz
7650 kHz
7675 kHz
7700 kHz
7725 kHz
7750 kHz
7775 kHz
7800 kHz
7825 kHz
7850 kHz
7875 kHz
7900 kHz
7925 kHz
7950 kHz
7975 kHz

CLICK "VIEW CART" YELLOW BUTTON IN ORDER TO CHECK OUT AND PAY with VISA, MASTERCARD, PAYPAL, American Express etc. !!

CLICK "VIEW CART" YELLOW BUTTON IN ORDER TO CHECK OUT AND PAY !!

VARIOUS CRYSTAL SALE LISTS:

Price for most orders is $16 to $25 each plus $7.00 total for USA shipping.

Frequency - kHz

Collins Crystals For Sale:

Drake Crystals For Sale:

Yaesu Crystals For Sale:

Military Surplus CS-137 Crystal case

These cases hold 120 standard FT243 crystals, as used in WW2 era military radios
and the same crystals have been used in ham radio equipment throughout
the past 50-60 years.

It's a nice green, double-locking case with two compartments that each hold 60 crystals.
Ideal for storing your radio crystals and keeping them from getting lost when you are
not on the air, or they also make a great collectible item.

I currently have one of these left for sale. They go for around $45 to $100 each on eBay.
This is available for $25.00 - for a nice, complete one.
Will sell for $25 plus shipping.

BFO crystals and filter crystals etc.

Several crystals are available on 100 kHz etc. as follows:

100 kHz calibrator crystals standard hc13/u - $36.00 each
HC-6/U crystals on 200 kHz - $29.00 each

HC-6/u crystals on 455 kHz - available for $36.00 each.

HC-6/U Crystals on 500 kHz - available for $32.00 each

HC-6/U Crystals on 1000 kHz - available for $24.00 each

FT243 Crystals

NOTE: Many of these same frequencies are now also all available as
wire lead HC49 crystals and HC6/U crystals too. Click to inquire.

Bargain Basement Deals on Groups of Ham Band FT243 and hc6/u Crystals!

CLICK HERE for lists - Many are ham band crystals!

E-mail us with your crystal needs. Click Here.

NOTE:


Some of our FT243 crystals above may be remanufactured crystals using original
WW2 era FT243 holders with a newly manufactured, HC49 or HC49US hermetically-sealed crystal
mounted inside. Like all crystals, these should not be used with a grid current
of greater than about 60 mA. They have been used successfully in many typical rigs
like the Heath DX40, HW16, DX100, Ameco AC-1, Drake 2NT, Hallicrafters HT-40, BC610,
Globe King, Homebrew power oscillators, and MOPA rigs etc.

FT243 SOCKETS

Click here to purchase crystal SOCKETS

New Plastic FT243 sockets.
Simply install these in any metal panel and they make a great FT243
crystal socket. Stock up for homebrew projects and repairs.
Available for $10.00 each.
I have a few of these left in various styles, plastic and ceramic - please inquire!
Click here to e-mail me about buying them.

We also have NATIONAL RADIO ceramic FT243 sockets available for $12.00 plus shipping.

NEW HC50/U SOCKETS

These are for the newer metal can crystals with pins spaced
about 0.3" apart. They are new metal and plastic sockets usable
all the way up to VHF. Single screw side mount, with solder terminals.
Great for amateur radio homebrew or repairs.
For diagram and dimensions click here.
Available for $3.00 each or 10 for $25.00 plus shipping.

NEW CERAMIC HC6/U SOCKETS

These are for the metal can crystals with pins spaced
about 1/2" apart. These are new, ceramic sockets usable
all the way up to VHF. Single screw mount, with solder terminals.
Great for amateur radio homebrew or repairs.
For diagram and dimensions click here.
They have 0.486" pin spacing. Smaller diameter pins than FT243.
These mount with a single hole.
Available for $4.00 each plus shipping.

Click to E-mail us - THANKS

CR1A CRYSTALS - CLICK HERE FOR LIST.

DC34 (BC669) CRYSTALS - CLICK HERE FOR LIST.

FT241A LF Crystals - CLICK HERE FOR LIST.

FT171B CRYSTALS - CLICK HERE FOR LIST.

HC-6/U CRYSTALS - CLICK HERE FOR LIST.

HC25/U CRYSTALS - CLICK HERE FOR LIST.

HC-33/U CRYSTALS - CLICK HERE FOR LIST.

HC49U CRYSTALS - CLICK HERE FOR LIST.

HC50/U CRYSTALS - CLICK HERE FOR LIST.

HC-51/U CRYSTALS - CLICK HERE FOR LIST.

Antique and Large CRYSTALS - CLICK HERE FOR LIST.

Click here for illustrated information on Crystal Holders (Cases) with dimensions

QUANTITY OF 100 FT243 CRYSTAL BLANKS

Now Available!

I have around 100 nice clean quartz crystals made for
use in FT243 holders.These are a nice mix from about 1000 kHz up to 8500 kHz.

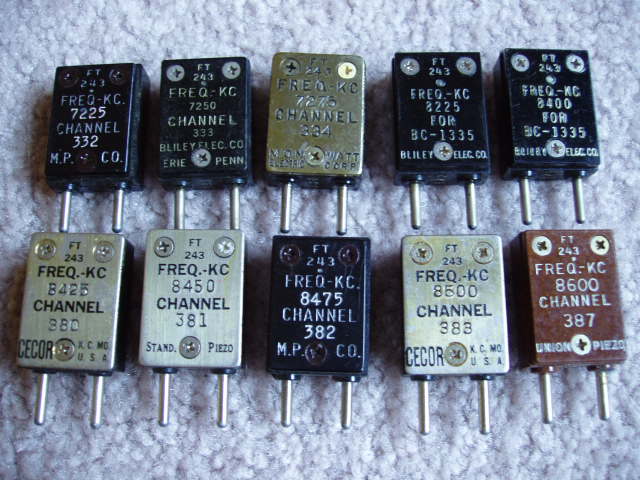

See photo below:
I will sell the whole bunch for $20.00 plus $6.00 for USA Shipping.

Contact plates are also available; Quantity 100 for $5.00 plus shipping Inquire by e-mail. Click here.

Phenolic insulators are also available; Quantity 100 for $5.00 plus shipping Inquire by e-mail. Click here.

Copper, tin and brass electrodes (mixed) are also available; Quantity 100 for $5.00 plus shipping Inquire by e-mail. Click here.

CR1A CRYSTALS - CLICK HERE FOR LIST.

DC34 Large CRYSTALS - CLICK HERE FOR LIST.

HC-6/U CRYSTALS - CLICK HERE FOR LIST.

Shipping and handling costs will be added to all orders at checkout.

PAYMENTS VIA PAYPAL GLADLY ACCEPTED!


Just add $7.00 for USA shipping and $2 for Paypal fee.

OR: to inquire or buy any item(s):

CLICK HERE to E-mail me

73 from Brian ((( Amateur Radio G3XLQ / AF4K )))
