COLLINS RADIO CRYSTALS FOR SALE

CUSTOMER REVIEWS.

Brian Carling, AF4K - click here to inquire or place an order via e-mail.

COLLINS KWM-2/-2A and S-LINE CRYSTALS

Type CR-18/u (HC6/U) metal can crystals available for all popular
Collins ranges.

6555 kHz to 14955 kHz - and - 7577.5 to 16477.5 kHz
We have almost ALL of these available - many in quantities. See chart below.

COMPLETE COLLINS CRYSTAL CHART - pop-up list

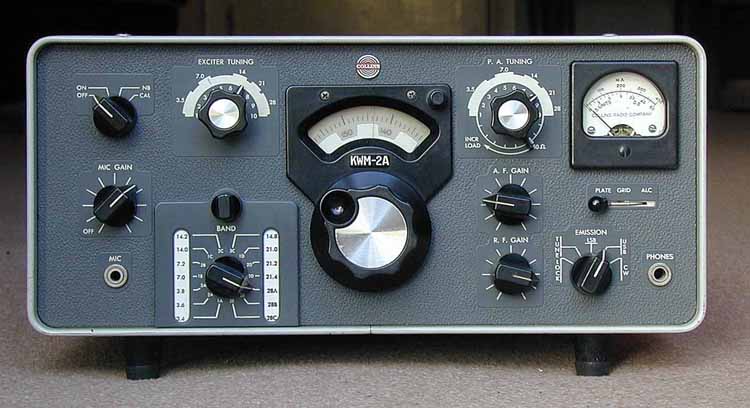

The S-line and KWM-2/2A radios can operate anywhere between 3.4 MHz and 30 MHz. The transceivers
are normally supplied with crystals for the frequency ranges: 3.4-3.6, 3.6-3.8, 3.8-4, 7-7.2,
7.2-7.4, 14-14.2, 14.2-14.4, 14.8-15, 21-21.2, 21.2-21.4, 21.4-21.6 and 28.5-28.7 MHz
plus 23 additional 200 kHz positions for 28-29.7 MHz. These can be used for the WARC bands
or for general shortwave / HF operation.

The amateur band crystals are usually located underneath the chassis of a KWM-2A.
The upper deck is for additional frequency ranges.

These HC6/U (same as CR-18U) crystals can also be used in the military type FRC-93 transceiver.
These are made to the highest manufacturing standards with excellent tolerance to ensure that
your radio is calibrated and right on the frequency every time.
Dimensions: 1.5" X 0.75" - and the pins are spaced 0.486" apart. Pins 0.093" diameter

Type CR-18/u (HC6/U) metal can crystals available for all popular Collins ranges from
3.4 MHz to 30 MHz
We have almost ALL of these available - many in quantities. See listings below. WHILE THEY LAST!

For use in the 32S-1, 32S-2, 32S3, 32S3A, 73S2, 75S3B, - 3C radios etc. Some models may
require the addition of an additional switching deck. These are available for purchase
on line from K9STH:
http://k9sth.com/uploads/Additional_Crystal_Deck_For.pdf

Reasonable prices.

PAY WITH PAYPAL OR CREDIT CARD or E-MAIL me to pay with a check or money order.

ADD EXTRA RANGES TO YOUR KWM-2 / 2A and other Collins Equipment.
Original Amphenol 2nd crystal deck for Collins equipment. 20 position 2-7/16" x 2-13/16".
CRYSTAL DECKS SOLD OUT.

MOST CRYSTALS FOR THE AMATEUR RADIO BANDS
ARE LISTED IN RED

Listed as:
Coverage Band - CRYSTAL FREQUENCY

100.00 kHz hc6u
200.00 kHz hc6u
453.65 kHz
456.35 kHz
3.4-3.6MHz=6.5550MHz
3.6-3.8MHz=6755kHz
3.8-4.0MHz=6.9550MHz
4.0-4.2MHz=7.1550MHz
4.2-4.4MHz=7.3550MHz
4.4-4.6MHz=7.5550MHz
4.6-4.8MHz=7.7550MHz
4.8-5.0MHz=7.9550 MHz
5.3-5.5 MHz=8.455 MHz
5.6-5.8 MHz=8.7550 MHz
6.2-6.4 MHz=9.3550 MHz
6.4-6.6MHz=9.5550MHz
6.6-6.8 MHz=9.7550MHz
6.8-7.0 MHz=9.9550MHz
7.0-7.2MHz=10.155MHz
7.2-7.4MHz=10.355MHz
7.4-7.6MHz=10.555MHz
7.6-7.8MHz=10.755MHz
7.8-8.0MHz=10.955MHz
8.0-8.2MHz=11.155MHz
8.2-8.4MHz=11.355MHz
8.4-8.6MHz=11.555MHz
8.6-8.8MHz=11.755MHz
8.8-9.0MHz=11.955MHz
9.0-9.2MHz=12.155MHz
9.2-9.4MHz=12.355MHz
9.4-9.6MHz=12.555 MHz
9.6-9.8MHz=12.755MHz
9.8-10.0MHz=12.955MHz
10.0-10.2MHz=13.155MHz
10.2-10.4MHz=13.355MHz
10.4-10.6MHz=13.555 MHz
10.6-10.8MHz=13.755MHz
10.8-11.0MHz=13.955MHz
11.0-11.2MHz=14.155MHz
11.2-11.4MHz=14.355MHz
11.4-11.6MHz=14.555MHz
11.6-11.8MHz=14.755MHz
11.8-12.0MHz=14.955MHz
12.0-12.2MHz=7.5775MHz

CHECK OUT (PAY NOW) - OR JUST VIEW CONTENTS ORDERED SO FAR:
CLICK "VIEW CART" YELLOW BUTTON IN ORDER TO CHECK OUT AND PAY with VISA, MASTERCARD, PAYPAL, American Express etc. !!

CLICK "VIEW CART" YELLOW BUTTON IN ORDER TO CHECK OUT AND PAY !!

CLICK ABOVE TO CHECK OUT (PAY NOW) - OR TO VIEW CONTENTS OF CART...

12.2-12.4MHz=7.6775MHz
12.4-12.6MHz=7.7775MHz
12.6-12.8MHz=7.8775MHz
12.8-13.0MHz=7.9775MHz
13.0-13.2MHz=8.0775MHz
13.2-13.4MHz=8.1775MHz
13.4-13.6MHz=8.2775MHz
13.6-13.8MHz=8.3775MHz
13.8-14.0MHz=8.4775MHz
14.0-14.2MHz=8.5775MHz
14.2-14.4MHz=8.6775MHz
14.4-14.6MHz=8.7775MHz
14.6-14.8MHz=8.8775MHz
14.8-15.0MHz=8.9775MHz
15.0-15.2MHz=9.0775MHz
15.2-15.4MHz=9.1775MHz
15.4-15.6MHz=9.2775MHz
15.6-15.8MHz=9.3775MHz
15.8-16.0MHz=9.4775MHz
16.0-16.2MHz=9.5775MHz
16.2-16.4MHz=9.6775MHz
16.4-16.6MHz=9.7775MHz
16.6-16.8MHz=9.8775MHz
16.8-17.0MHz=9.9775MHz
17.0-17.2MHz=10.0775MHz
17.2-17.4MHz=10.1775MHz
17.4-17.6MHz=10.2775MHz
17.6-17.8MHz=10.3775MHz
17.8-18.0MHz=10.4775MHz
18.0-18.2MHz=10.5775MHz
18.2-18.4MHz=10.6775MHz
18.4-18.6MHz=10.7775MHz
18.6-18.8MHz=10.8775MHz
18.8-19.0MHz=10.9775MHz
19.0-19.2MHz=11.0775MHz
19.2-19.4MHz=11.1775MHz
19.4-19.6MHz=11.2775MHz
19.6-19.8MHz=11.3775MHz
19.8-20.0MHz=11.4775MHz
20.0-20.2MHz=11.5775MHz
20.2-20.4MHz=11.6775MHz
20.4-20.6MHz=11.7775MHz
20.6-20.8MHz=11.8775MHz
20.8-21.0MHz=11.9775MHz
21.0-21.2MHz=12.0775MHz
21.2-21.4MHz=12.1775MHz
21.4-21.6MHz=12.2775MHz
21.6-21.8MHz=12.3775MHz
21.8-22.0MHz=12.4775MHz
22.0-22.2MHz=12.5775MHz
22.2-22.4MHz=12.6775MHz
22.4-22.6MHz=12.7775MHz
22.6-22.8MHz=12.8775MHz
22.8-23.0MHz=12.9775MHz
23.0-23.2MHz=13.0775MHz
23.2-23.4MHz=13.1775MHz
23.4-23.6MHz=13.2775MHz
23.6-23.8MHz=13.3775MHz
23.8-24.0MHz=13.4775MHz
24.0-24.2MHz=13.5775MHz
24.2-24.4MHz=13.6775MHz
24.4-24.6MHz=13.7775MHz
24.6-24.8MHz=13.8775MHz
24.8-25.0MHz=13.9775MHz
25.0-25.2MHz=14.0775MHz
25.2-25.4MHz=14.1775MHz
25.6-25.8MHz=14.3775MHz
25.8-26.0MHz=14.4775MHz
26.0-26.2MHz=14.5775MHz
26.2-26.4 MHz=14.6775MHz
26.4-26.6MHz=14.7775 MHz
26.6-26.8MHz=14.8775 MHz
26.8-27.0 MHz=14.9775MHz
27.0-27.2 MHz=15.0775MHz
27.2-27.4MHz=15.1775MHz
27.4-27.6MHz=15.2775MHz
27.6-27.8MHz=15.3775MHz
27.8-28.0MHz=15.4775MHz
27.9-28.1 MHz=15.5275MHz
28.0-28.2 MHz=15.5775MHz
28.1-28.3 MHz=15.6275MHz
28.2-28.4 MHz=15.6775MHz
28.3-28.5 MHz=15.7275MHz
28.4-28.6 MHz=15.7775MHz
28.5-28.7MHz=15.8275MHz
28.7-28.9MHz=15.9275MHz
28.8-29.0 MHz=15.9775MHz
28.9-29.1MHz=16.0275MHz
29.0-29.2MHz=16.0775MHz
29.1-29.3MHz=16.1275MHz
29.2-29.4MHz=16.1775MHz
29.3-29.5MHz=16.2275MHz
29.4-29.6MHz=16.2775MHz
29.5-29.7MHz=16.3275MHz
29.6-29.8MHz=16.3775MHz
29.8-30.0MHz=16.4775MHz

NO SALES TO ITALY or ARGENTINA! For other, non-USA mainland destinations, PLEASE ALLOW up to 4 to 6 WEEKS! Inquire by e-mail for details.

CHECK OUT (PAY NOW) - OR JUST VIEW CONTENTS ORDERED SO FAR:
CLICK "VIEW CART" YELLOW BUTTON IN ORDER TO CHECK OUT AND PAY with VISA, MASTERCARD, PAYPAL, American Express etc. !!

CLICK "VIEW CART" YELLOW BUTTON IN ORDER TO CHECK OUT AND PAY !!

NEED HELP? - contact us...

Collins CALIBRATOR CRYSTALS

100 kHz

200.00 kHz

1000 kHz

NEW CERAMIC HC6/U SOCKETS

These are for the metal can crystals with pins spaced
about 1/2" apart. These are new, ceramic sockets usable
all the way up to VHF. Single screw mount, with solder terminals.
Great for amateur radio homebrew or repairs.
For diagram and dimensions click here.
They have 0.486" pin spacing. Smaller diameter pins than FT243.
These mount with a single hole.
Available for $4.00 each plus shipping


Ceramic hc6u crystal socket

Click here for illustrated information on Crystal Holders (Cases) with dimensions

CUSTOM CRYSTALS

We no longer supply custom made crystals. If you don't see the item that you need listed here, we MIGHT have it. So please e-mail or call us first, but we can no longer make or supply custom crystals.

For custom crystals, please contact: QUARTSLAB UK - Excellent supplier of custom crystals from Wales. http://www.quartslab.com/ - a reliable company, formerly owned by our friend David Collings.

Address: QUARTSLAB Co., Parth Y Barcud, Blaenpennal, ABERYSTWYTH, SY23 4TR, United Kingdom

Tel: International +44 20 7100 6357 or (mobile) +44 7496 177 157

Email: sales2@quartslab.com

Web site: www.quartslab.com

Made to order & custom made quartz crystals in all quantities

Or possibly try:
Andy/Andreas Fleischer DC9XP
Paschenburgstr. 22
D-28211 Bremen / Germany
Tel. (+49) 0421-353060

Andy Fleischer in Bremen Germany - supplier of Custom Crystals

HAM BAND FT243 CRYSTALS - CLICK HERE FOR LIST.

1 MHz to 2 MHz FT243 CRYSTALS - CLICK HERE FOR LIST.

FT243 CRYSTALS - CLICK HERE FOR LIST.

FT241 CRYSTALS - CLICK HERE FOR LIST.

FT171B CRYSTALS for BC610 - CLICK HERE FOR LIST.

HC25/U CRYSTALS - CLICK HERE FOR LIST.

HC-33/U CRYSTALS - CLICK HERE FOR LIST.

HC49U CRYSTALS - CLICK HERE FOR LIST.

HC50/U CRYSTALS - CLICK HERE FOR LIST.

Antique and Large CRYSTALS - CLICK HERE FOR LIST.

Click here for illustrated information on Crystal Holders (Cases) with dimensions
